Polyurethane PUR

Kunststoffe

Polyurethane is a compact and elastic elastomer.

Formed components are usually manufactured by depressurised casting in open metallic moulds. According to the production requirements of the finished part, armouring or stiffening made of metal can be inserted.

Precipitation is effected by heat. After the component has been cast and removed, it is tempered in a thermal chamber ensuring the component’s usage properties.

Properties

Good elasticity with high structural cohesiveness. The e-module is nearly twice as high as with rubber. The working temperature lies in between -40°C and + 80°C, temporarily also up to ca. + 110°C.

Resistance against

  • Alcohol
  • Ether
  • Glycol
  • Mineral oils and fats
  • Aromatic hydrocarbons

Unstable with

  • Chlorinated hydrocarbons
  • Ester
  • Ketones
  • Bases and acids > 3%

Material particulars:

Hardness: ShoreA 65 - 95
Density ca: g/cm3 1,20
Tensile strength: N/mm² 25 - 40
Elongation at break ca: % 350 - 500
Elasticity at thrust: % 35-45

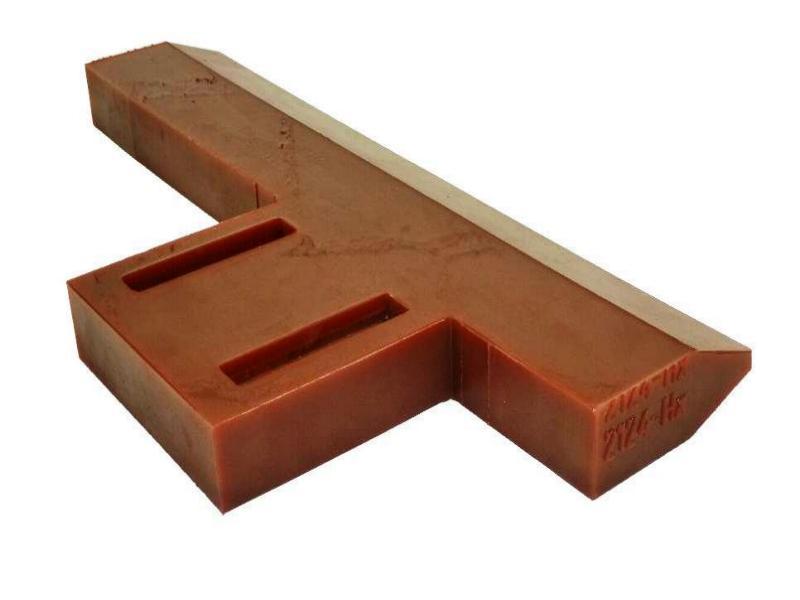

Scraper PUR
Special mixing blades made of polyurethane
Blade
